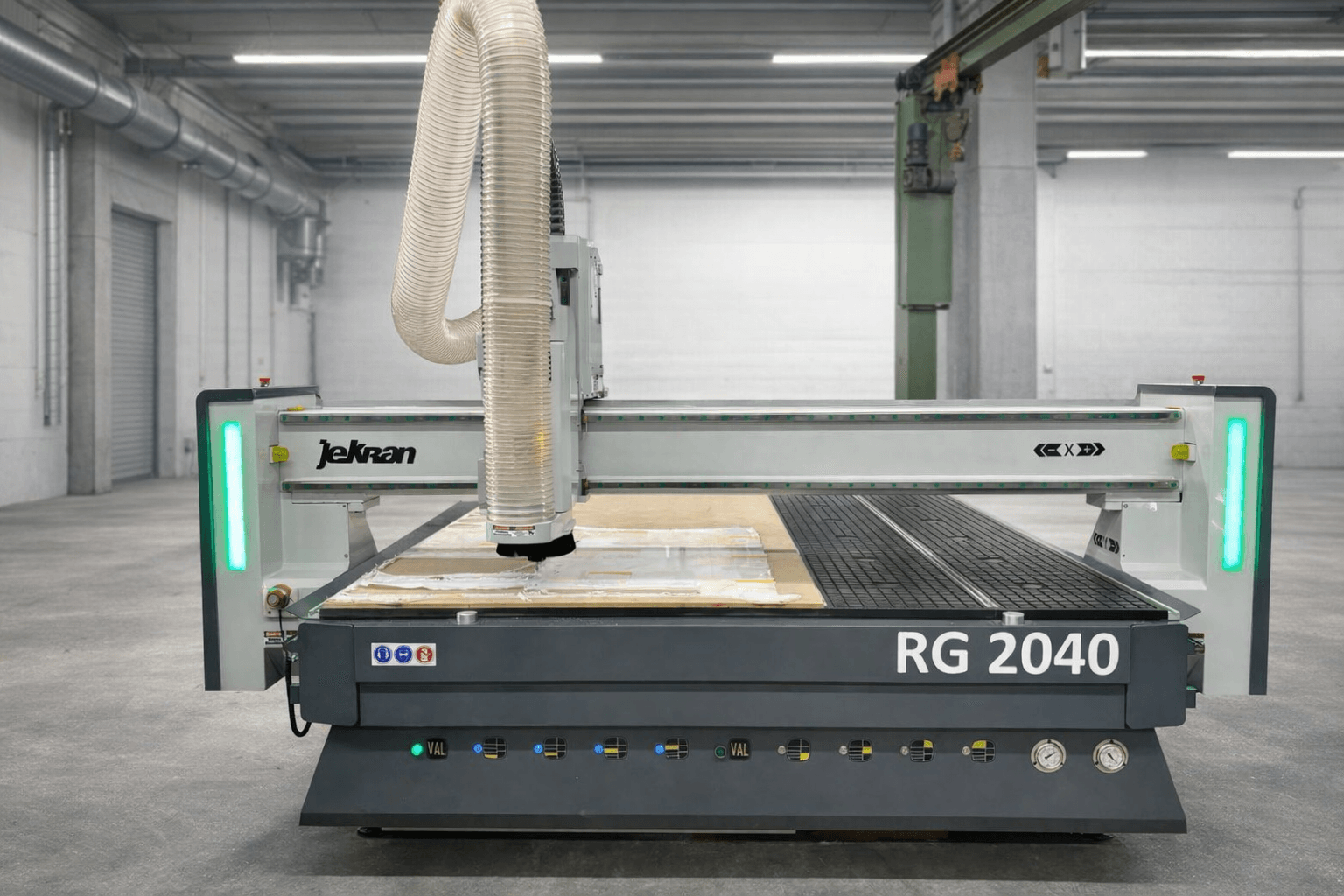

Introducing Our New High-End CNC Router
We are excited to add a powerful new machine to our production floor — a high-end CNC router built for precision, speed, and versatility across a wide range of materials.
Designed for demanding industrial applications, this machine combines cutting-edge components from leading manufacturers with a robust heavy-duty welded steel structure, delivering outstanding results on wood, plastic, metal, and composite materials.
Key Highlights
- Large working area — 2050 x 4050 x 200mm, ideal for big format production
- High-speed performance — up to 80m/min travel speed, 45m/min working speed
- Italy ATC HSD spindle — 9.5KW, 24,000 RPM for clean, precise cuts
- Automatic tool change — 10-position linear magazine (ISO30), no manual intervention needed
- Exceptional accuracy — ±0.05mm/m for consistent, repeatable results
- 8-zone vacuum working table — secure material hold across the full bed
- Premium components — HIWIN rails, Yaskawa servo motors, Siemens & Schneider electronics, Igus power cables
- Auto lubrication system — reduced maintenance, longer machine life
- Full options included — dust collector (3KW) and Germany Becker vacuum pump (5.5KW)
Technical Specifications
| Specification | Details |
| Lathe structure | Heavy-duty welded steel bed |
| Working area (X, Y, Z) | 2050 x 4050 x 200mm |
| Max travelling speed | 80 m/min |
| Max working speed | 45 m/min |
| Machine accuracy | ±0.05mm/m |
| Spindle | 9.5KW Italy ATC HSD, ER32, 24,000 RPM |
| Inverter | Delta |
| Tool magazine | Linear, 10 positions, ISO30 |
| Working table | T-slot vacuum, 8 zones |
| Transmission | HIWIN linear rails + helical rack and pinion |
| Working mode | Yaskawa servo motor + Shimpo planetary reducer |
| Operating system | PC control system |
| Voltage | 380V, 3PH, 50Hz |
| Lubrication | Automatic |
| Electronics | Siemens & Schneider |
| Power cable | Igus Germany |
| Dust collector (option) | 3KW, dual bags |
| Vacuum pump (option) | Germany Becker, 5.5KW |
Interested in learning more? Contact us for details.
FAQs
What materials can this CNC router cut?
The machine is designed to work on a wide range of materials including wood, plastic, aluminium, and composite panels. The 9.5KW HSD spindle at 24,000 RPM ensures clean and precise cuts across all of them.
What is an automatic tool change and why does it matter?
The automatic tool change (ATC) allows the machine to switch cutting tools on its own, without any manual intervention. With a 10-position linear magazine, the machine can handle multiple operations in a single job — saving time and improving consistency.
What is the maximum working area?
The working area is 2050 x 4050 x 200mm (X, Y, Z), making it ideal for large-format production jobs.
Does the machine require a lot of maintenance?
The integrated auto lubrication system significantly reduces routine maintenance needs, keeping downtime to a minimum and extending the machine’s operational life.
