Combo
Welcome to the future of cutting technology.

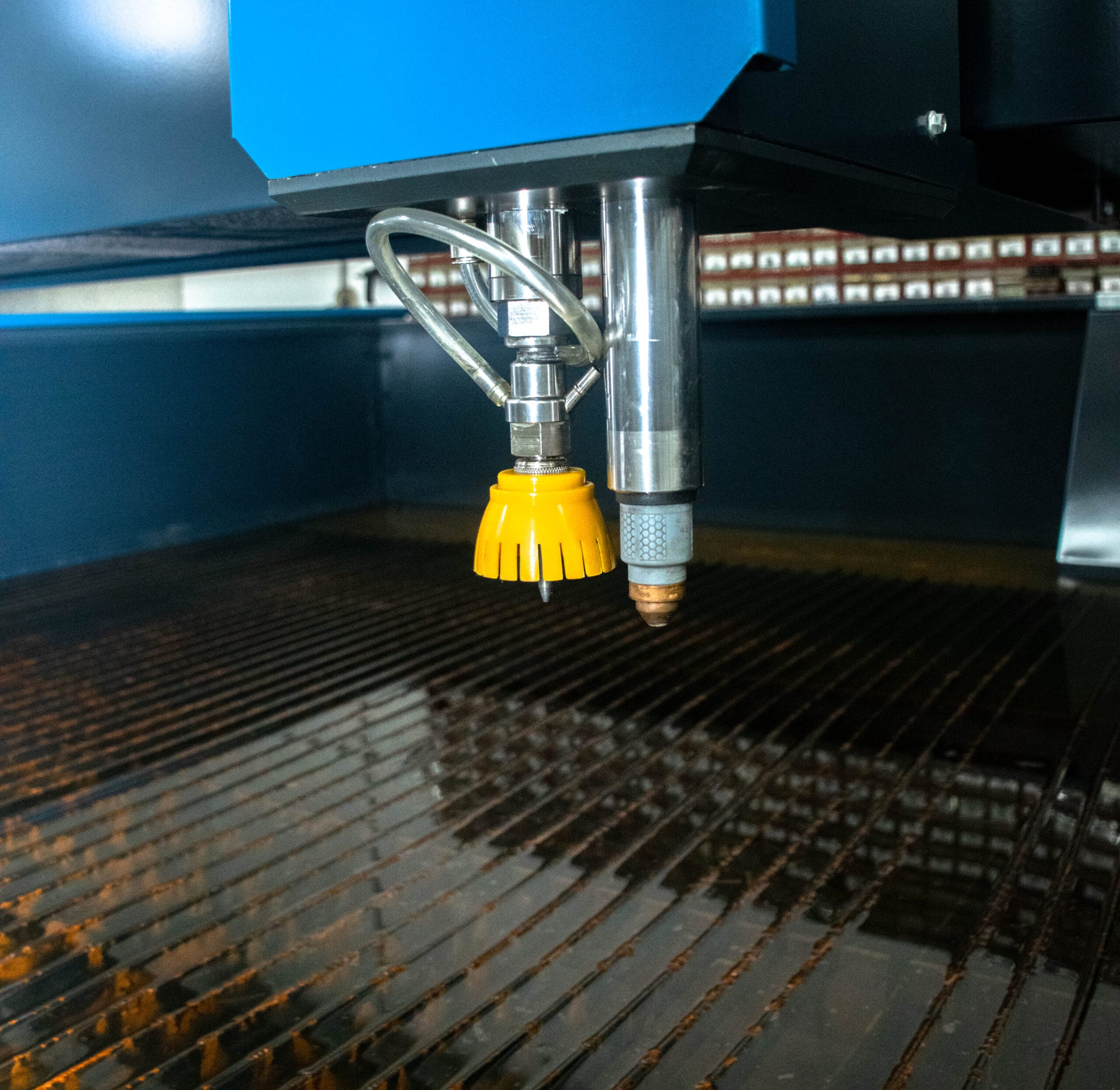

Introducing our innovative Combo machine—a harmonious fusion of dual-nozzle waterjet and plasma cutting technologies designed to redefine precision and versatility. Crafted with groundbreaking dual nozzle engineering, it delivers unparalleled performance across metals, composites, and beyond.
Every facet—from its meticulously engineered dual-nozzle system ensuring pristine, pipe-free aesthetics to the smart integration of both waterjet and plasma heads—has been developed to meet the rigorous demands of modern fabrication. The intelligent, dual-mode configuration offers effortless transition between cutting methods, ensuring each cut is executed with extraordinary finesse.
Experience the future of fabrication with a machine where form and function converge flawlessly. The Combo machine redefines efficiency and precision, transforming every cut into a work of art and engineering excellence.
Technical Specifications
| Model | Models available | X-axis travel (mm) | Y-axis travel (mm) | Z-axis travel (mm) | Max. speed (m/min) | Linear Accuracy (mm) | Repeatability (mm) | Pump/Unit/Spindle Motor | Footprint (m)* |
| Combo | 4021-Combo | 4100 | 2100 | 200 | 25 | +/- 0.03 | +/- 0.02 | Jekran Pump model 22/30 22/30kW - 3 phase - 3,800bar Hypertherm or GYS | 8.5x3.4 |
| 6021-Combo | 6100 | 2100 | 200 | 25 | +/- 0.03 | +/- 0.02 | Jekran Pump model 22/30 22/30kW - 3 phase - 3,800bar Hypertherm or GYS | 10.5x3.4 | |
| *Note: The footprint dimensions are only a guideline. The HP pump, bulk hopper, garnet removal structure, and console can be positioned differently to fit the workspace available to our customers. |
Pump Technical Specifications
| Model 22 Direct Drive | Model 30 Direct Drive | |
| Electric Servo Motor Power | 30 HP (22 kW) | 40 HP (30 kW) |
| Efficiency | ≥ 90% | ≥ 90% |
| Output Pressure PSI | 58,000 psi | 58,000 psi |
| Output Pressure Bar | 4000 Bar | 4000 Bar |
| Orifice & Flow Rate | 0.011" / 0.82 gpm (0.3 mm / 3.1 lpm) | 0.014" / 1.1 gpm (0.35 mm / 4.2 lpm) |
| Footprint LxWxH | 48" x 31" x 42"(1220 mm x 800 mm x 1065 mm) | 48" x 31" x 42"(1220 mm x 800 mm x 1065 mm) |
FAQs
Our Combo machine merges high-precision waterjet cutting with high-speed plasma capabilities in a dual-nozzle setup, offering unmatched flexibility. Its intelligent switching and independent control system allow it to adapt effortlessly to different materials and cutting needs—all in one powerful solution.
Designed with flexible configuration options and advanced software, our 5-Axis solution can be tailored to meet specific production requirements while guaranteeing high-performance operation.
We offer comprehensive support—from initial installation and training to ongoing maintenance—ensuring that you receive expert assistance every step of the way.
